Filling DEM¶
To fill or not to fill. DEM’s will have numerous sinks, so before rivers can be extracted, a hydrologically consistent surface needs to be produced. Local depressions will interrupt flow-routing alogorithms and produce incorrect stream networks if incorrect patterns of flow accumulation have been created. However, it is worth noting that not all sinks are errors due to resolution of the data or rounding of elevations to the nearest integer, these sinks can be real-life features. GRASS r.watershed module does not require DEM’s to be filled. Instead it uses a least-cost search A* algorithm to traverse the elevation surface from the outlet. Whether you decide to fill your DEM before processing, will depend on what aspects you are exploring.

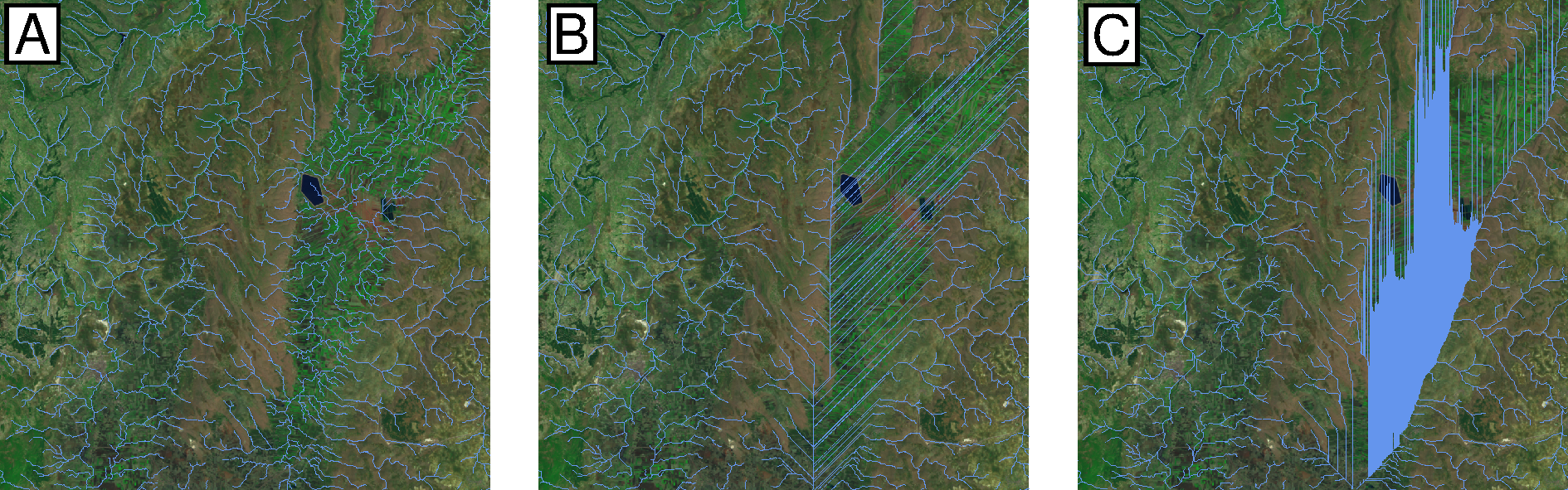

Stream Flat Artefacts. (A) GRASS Stream network extracted from an unfilled dem. (B) GRASS stream network using filled DEM. (C) ArcGIS stream network using filled dem.
Filling with GRASS¶
GRASS r.fill.dir module fills DEM’s in the same way as ArcGIS’s Fill tool (available as part of ArcGIS’s spatial analyst licence). GRASS follows Henson and Domingue (1998) to filter and fill the elevation map. Using the neighborhood technique, r.fill.dir fills depressions with one pass across the elevation model and to produce a flow direction map by assigning flow direction towards the steepest slope from one of the 8 surrounding cells (D8 algorithm). In flat areas, where cells in a number of different directions have the steepest slope, the algorithm will iteratively try different routes by propogating flow directions from areas where directions are know into areas that can’t be resolved. If r.fill.dir is unable to fill problem areas on first pass, run r.fill.dir repeatedly (using output from one run as input to the next run) to fill all problem areas. Be aware that these depression-filling algorithms create artifical features (e.g. flats leading to parallel streams).
#Sets computational region
GRASS :~ > g.region raster=dem -p
#Fills dem
GRASS :~ > r.fill.dir input=dem output=dem_fill direction=fdir \
areas=dem_sinks
Difference map comparing filled vs unfilled dem for (A) ArcGIS fill tool and (B) GRASS r.fill.dir tool.
Use raster calculator to generate a difference map showing pixelwise differences between the raw and filled dem:
# Create diff map
GRASS :~ > r.mapcalc "dem_diff = dem_fill - dem"
GRASS :~ > r.colors dem_diff color=differences
# assess univariate statistics of differences
GRASS :~ > r.univar -e dem_diff
# vectorize filled areas (see r.univar output,
# fills are positive values)
GRASS :~ > r.mapcalc "dem_fill_area = if(dem_diff > 0.0, 1, null() )"
GRASS :~ > r.to.vect input=dem_fill_area output=dem_fill_area type=area
# visualise differences using hillshade
GRASS :~ > r.relief input=dem_fill output=dem_fill_shade
GRASS :~ > d.mon wx0
GRASS :~ > d.shade shade=dem_fill_shade color=dem_fill
GRASS :~ > d.vect dem_fill_area type=boundary color=red
Large Datasets: Using Python Richdem¶
Grass’s r.fill.dir module does not cope well with large raster datasets. It is worth exploring python modules like Richdem created by Richard Barnes from Berkeley to fill DEMs before importing into GRASS. Below is an example using Richdem in python to fill the DEM and compare output with the unfilled DEM.
>>> import richdem as rd
>>> input="dem.tif"
>>> output="dem_filled.tif"
#Load DEM
>>> dem = rd.LoadGDAL(input)
#Copy the DEM if intending to create diff map
#Skip this step if not interested in comparing DEMs
>>> demorig = dem.copy()
#Fill depressions in the DEM. The data is modified in-place
#to avoid making an unnecessary copy. This saves both time and RAM
>>> rd.FillDepressions(dem, epsilon=False, in_place=True)
#Compare difference of the filled and unfilled DEM
>>> diff = dem - demorig
#Display the difference.
#Do not plot values where there was no difference.
#Note: none of the *rd.rdShow* modules worked for me
#but can be easily plotted up in GMT as in the figure above
>>> rd.rdShow(diff, ignore_colours=[0])
#Save the DEM
>>> rd.SaveGDAL(output, dem)
Extracting Stream Network¶
Flow Accumulation¶
Flow accumulation can be generated using the GRASS module r.watershed. Ths is based on the least cost path (LCP) algorithm by Hart et al., 1968 and Ehlschlaeger, 1989 originally designed to increase processing speed and reduce memory use. Outlets, or pour points, are the lowest point along the map boundary where at least one neighbouring cell has unknown elevation (i.e. masked coastlines). Instead of using the path of steepest descent, the search proceeds along the least steep uphill slope from a pour point sorted on cost (i.e. lowest elevation). If a sink is encountered, the search will take the steepest descent to the bottom of the depression and then continue uphill as before. The search continues until all grid points have been processed.
The flow accumulation raster can be created using r.watershed with the option of using single flow direction (-s flag) or multiple flow direction (-m flag).
| Inputs: | Filled dem |
| Output: | Flow accumulation raster |
GRASS :~ > r.watershed -s ele=dem acc=facc
Flow Direction and Stream Network¶
The GRASS module r.stream.extract will output both a flow direction raster and stream network. Note that both modules r.stream.extract and r.watershed produce slightly different vector layers, so use r.stream.extract to create the vectorised stream network.
| Inputs | filled dem, flow accumulation raster |
| Threshold | min flow accumulation to initiate streams |
| Outputs | flow direction, stream network raster and vector layer |
The threshold will determine the river network density. You will need to play around with this number and check the fidelity of stream network with Landsat and/or satellite imagery. For example, a threshold of 300 will extract streams with a minimum drainage area of 0.27 km 2 for a 30 m dem or 2.43 km 2 for a 90 m dem.
GRASS :~ > r.stream.extract elevation=dem accumulation=facc \
threshold=300 stream_rast=stream \
stream_vector=stream direction=fdir
Delineating Catchments¶
Sub-catchments extracted using r.watershed v. main watershed extracted using r.stream.basins
While r.watershed outputs a basins raster, the resulting basin raster identifies all sub-catchments. Use the -l flag in the r.stream.basins module to identify main watersheds in the DEM of interest.
GRASS :~ > r.stream.basins -l direction=fdir stream_rast=stream \
basins=basin
Incomplete Basins¶
Incomplete basins will underestimate flow accumulation which can be a problem where the regional extent of the dem truncates complete catchment areas. The flow accumulation raster will identify these areas with negative values and problem areas can be identified using the raster calculator. If these incomplete basins are problematic for subsequent analysis, expand the region of interest and re-create the rasters following the steps above.
Inputs required: Filled dem, basin
#To identify parts of the basin likely to underestimate
#flow accumulation
GRASS :~ > r.mapcalc "problems = if(facc < 0, basin, null())"
Exporting Vectors¶
Export vector layers using the v.out.ogr module. This tool allows you to specify any number of different output formats. This code example uses GMT. Remember for stream networks, make sure to specify that the type=line. Areas seem to be automatically picked up with no complaints by GMT when it comes to plotting.
GRASS 7.6.0 :~ > v.out.ogr input=vector_file output=vector_file.shp \
format="OGR_GMT"
